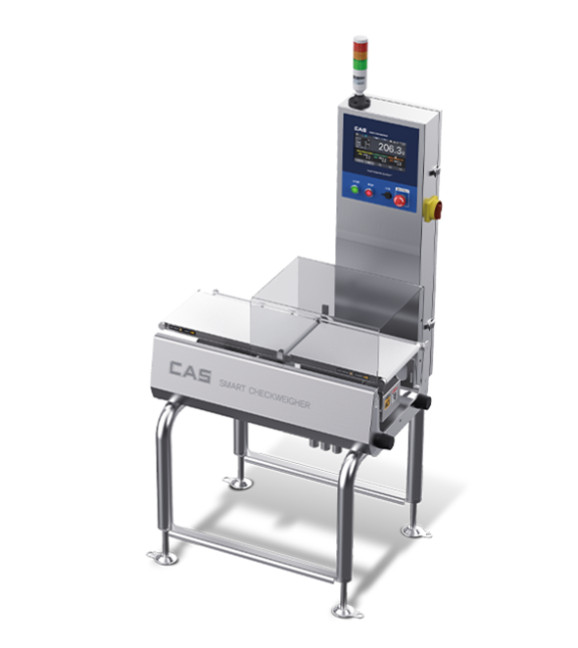

CAS Auto Checker CCK700 Auto Checker – Tartım Kontrol Bantları üretimden çıkan ambalajlı ya da ambalajsız ürünlerin konveyör üzerinden geçişleri sırasında otomatik olarak tartılmasını, istenilen ağırlık toleransı içerisinde olmayan ürünlerin hattan ayrılmasını sağlar. Raporlama özelliği ile gün ya da vardiya sonunda hattan geçen tolerans dışı (düşük veya yüksek) / tolerans içi ağırlıktaki ürün adedi ve ağırlık bilgilerini listeler & raporlar.
High Resolution Processing
CCK700 series is equipped with high-precision load cell and high-performance ADC (A/D Sampling: up to 800Hz), and provides optimal throughput and stability via multiple digital filtering and automatic zero tracking functions.
Optimization of Weighing Configuration
It is possible to set optimal filter conditions by automatically measuring throughput, belt speed and product length through sampling check of the weighed object.
Store up to 999 products
Storing & Recalling various information by item (stored info : tare weight, belt speed, high/low weight, throughput, product length)
8″ Color Touch Screen Display & User-friendly Graphic User Interface
-8″ Color touch screen display with 800×480 of resolution
– User-friendly graphic user interface
– Support with QWERTY Keyboard
Various Weighing Screen
Screen switching is possible with simple operation (drag), and screen color is changed according to the judgment.
Various Interface
– Equipped with Ethernet & RS-232/485, USB as standard
– Data back-up(Data save as Excel csv.file) and Parameter set-up via USB memory
Modbus Communication
– Equipped with Modbus RTU/Modbus TCP as standard.
– Operations such as stop & start weighing, changing item & checking No. of Throughput and rejected products can be set from an external device like PC & PLC, HMI.
Product Specifications
You can check the full contents by pushing the scrollbar at the bottom.
